Choosing a compass

Silva, Recta and Suunto are good brands, with the Silva Expedition 4 and Recta DT420 being highly recommended, So
consider spending that little extra and get a decent one.

What do we want from our Compass

 1. Clear plastic baseplate: see through to the map and use additional direction of travel lines under the compass as well as the edges.   6. Index line:under or close to the degree markings on Baseplate. Beware some cheaper models do not have index lines making them very inaccurate.
 2. Length of baseplate: - longer is better, easier to
take bearings between points further apart on map
 7.  Bold orienting lines and orienting pointer: for easy alignment of the rotating Housing.
 3. Romers or Scales: scales rulers allows you to read directly the distance on the map in metres. Right Angled Romers do northings and eastings at the same time.  8 Quality

Jeweled Bearings: Compass needle spins freely
 4. Ruled edges: allows you to measure in cm and
often inches as well
 9. Molded lettering: as opposed to printed lettering which quicky wares off.
 5.    Magnifying Glass: useful in poor lighting conditions and with large scale maps to see extra detail.  10. Long Guarantee:
Silva has 3 year guarantee.



Page down for list of suitable compasses at some of the best prices available.

            - Click on the Manufacturer or the individual compass model for full details

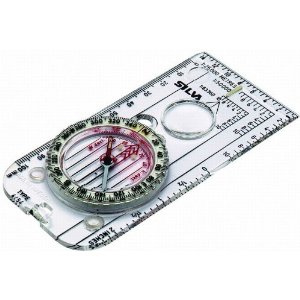

Recommended: Silva Compass Expedition 4-360    Part No.

The Silva Expedition 4 Compass is a baseplate compass with almost everything. Magnifier, millimetre and inch scales. Romer scales: 1:40.000 1:50.000 1:25.000. A compass with extra functionality for GPS users.




Graduations:
 360°
Romers:  1:25,000, 1:40,000, 1:50,000
Scales:      inch and mm
Size: 125mm x 60mm
Has magifying glass:
Yes
Weight:

Has luminous face:  Yes
Has luminous baseplate:  Yes
Declination Scale inside the capsule
Bearings Sapphire jewel bearing for friction free movement of the compass needle
Graduations Durable hot-stamping of scales/graduation
 Other  Patented red/black orienting lines inside the compass housing

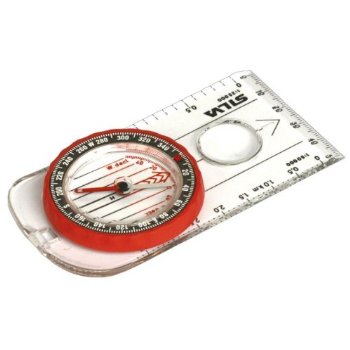

Silva Ranger 3 Compass
  Part Number: 36783-1701

The Silva Ranger 3 compass is a classic baseplate compass that is used all over the world. Soft, easy-grip compass housing in DryflexTM. Built in magnifier. Map scales in millimetres, 1:50.000 and 1:25.000


Key Features of the Ranger 3
Graduations:
360°
Map measuring scales: mm, 1:25,000, 1:50,000
Size: 110mm x 50mm
Weight: 30 g
Has magifying glass:
Yes
Has luminous face: Yes
Has luminous baseplate: Yes
Declination scale inside the capsule
 Bearings Sapphire jewel bearing for friction free movement of the compass needle
 Graduations Durable hot-stamping of scales/graduation
 Material Compass housing made from Dryflex™
 Other Patented red/black orienting lines inside the compass housing

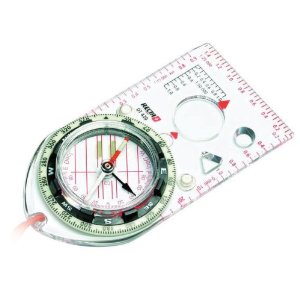

 Recommended  Recta Sport DT420 Elite     Part No.


Baseplate with round edges. Magnifying lens 20mm diameter. Holes for control marking. Anti-slip pads to keep the compass steady on the map. Notched bezel with self cleaning system for capsule mechanism. Adjustable declination correction scale and built in clinometer. Luminous markings and bezel.


Graduations:
 360°
Romers:  1:5000, 1:10,000, 1:25,000,  1:50,000
Size: 121mm x 61mm
Has magifying glass:
Yes
 Weight:  46 g
Has luminous face:  Yes
Has luminous baseplate:  Yes

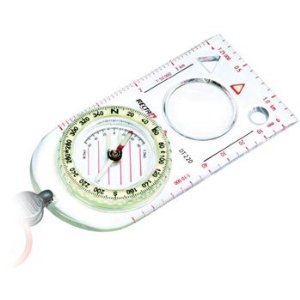

Recta Compass DT220 Sport
    Part No.

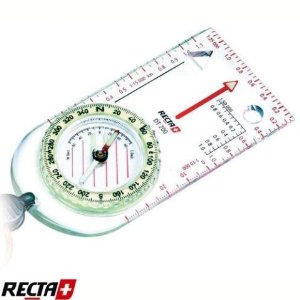

   Recta Compass DT200 Romer     Part No.


X2X

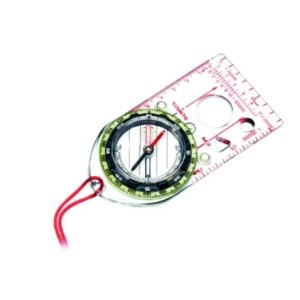

 Recommended  Suunto M-3/D/L Compass     Part No.

A premium quality precision compass for convenient direction taking even in demanding conditions. The M-Series represents durable, reliable, high quality navigational aids, which perform flawlessly in even the most demanding of conditions. These compasses feature a large liquid filled capsule and adjustable declination correction scale. Another convenient feature of the models in this series is the serrated bezel ring, which is easy to turn even in cold conditions while wearing gloves. Due to their easy-to-read luminous markings and magnifying lenses, the compasses of the M-Series are also ideally suited to navigating in conditions of poor visibility.





Specifications

·         Balanced for northern hemisphere

·         Serrated bezel ring

·         Jewel bearing

·         Adjustable declination correction scale

·         Base plate with anti-slip rubber pads and rounded edges

·         Baseplate with magnifying lens

·         Easy-to-read luminous markings help to use the compass in dark conditions

·         Control marking holes

·         Measurements in cm

·         Size: 60 x 125 mm /2.4" x 4.9"

Weight

44g

X

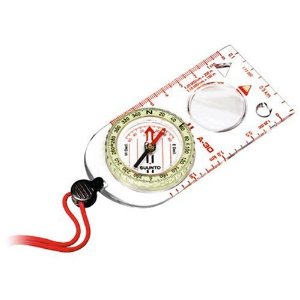

   Suunto A-30 Field Compass     Part No.


Graduations:
 360°

Scakes:  1:25,000, 1:50,000

Size: 125mm x 60mm

Has magifying glass:
Yes

Has luminous face:  Yes

Has luminous baseplate:  Yes

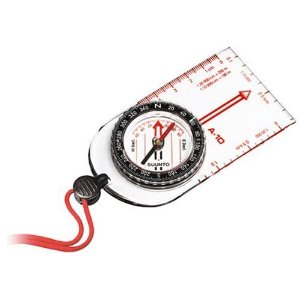

   Suunto A-10 Field Compass     Part No.


Graduations:
 360°
Romers:  1:25,000, 1:40,000, 1:50,000
Size: 125mm x 60mm
Has magifying glass:
Yes
Has luminous face:  Yes
Has luminous baseplate:  Yes
